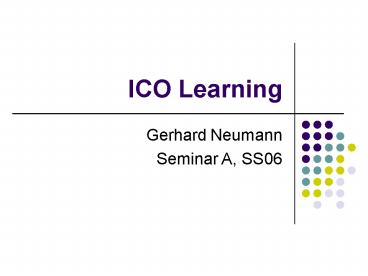

ICO Learning

1
ICO Learning

• Gerhard Neumann
• Seminar A, SS06

2
Overview

• Short Overview of different control methods
• Correlation Based Learning
• ISO Learning
• Comparison to other Methods (Wörgötter05)
• TD Learning
• STDP
• ICO Learning (Porr06)
• Learning Receptive Fields (Kulvicius06)

3
Comparison of ISO learning to other Methods

• Comparison for Classical Conditioning learning
  Problems (open loop control)
• Relating RL to Classical Conditioning
• Classical Conditioning Pairing of two subsequent
  stimuli is learned such that the presentation of
  the first stimulus is taken as a predictor of the
  second one.
• RL Maximization of Rewards
• v Predictor of future reward

4
RL for Classical Conditioning

• TD-Error
• Derivation Term
• Weight Change
• gt Nothing new so far
• Goal Output v should react after learning to the
  onset of the CS xn, and remains active until the
  reward terminates
• Present CS internally by a chain of n 1 delayed
  pulses xi
• Replace the states from traditional RL with time
  steps

5
RL for Classical Conditioning

• Special kind of E-Trace
• Serial Compound Representation
• Learning Steps
• Rectangular response of v
• Special Treatment of the reward not necessary
• x0 can replace the reward when setting w0 to 1 at
  the beginning

6
Comparison for Classical Conditioning

• Correlation Based Learning
• Reward x0 is not an independent term as in TD
  learning
• TD-Learning

7
Comparison for Classical Conditioning

• TD-Learning
• ISO-Learning
• Uses another form of E-Traces (Band-pass filters)
• Used for all input pathways
• -gt also for calculating the output

8
Comparison for the closed loop

• Closed loop
• Actions of the agent affect future sensory input
• Comparison not so easy any more, because behavior
  of the algorithms is now quite different
• Reward Based Architectures
• Actor-Critic Architecture
• Use Evaluative Feed-Back
• Reward Maximation
• A good reward signal is very
• often hard to find
• In nature Found by evolution
• Can theoretically be applied to any learning
  problem
• Resolution in the State Space
• Only applicable for low dimensional state spaces
• -gt Curse of dimensionality!

9
Comparison for the closed loop

• Correlation Based Architectures
• Non-evaluative feedback, all signals are value
  free
• Minimize Disturbance
• Valid Regions are usually much bigger than in for
  reward maximation
• Better Convergence !!
• Restricted Solutions
• Evaluations are implicitely build into the sign
  of the reaction behavior
• Actor and Critic are the same architectureal
  building block
• Only for a restricted set of learning problems
• Hard to apply for complex tasks
• Resolution in Time
• Only looks at temporal correlation of the input
  variables
• Can be applied for high dimensional state spaces

10
Comparison of ISO learning and STDP

• ISO learning generically produces a bimodal
  weight change curve
• Similiar to the STDP (Spike timing dependent
  plasticity) learning weight change curve
• ISO learning STDP rule
• Potential from the synapse Filtered version
  of a spike
• Gradient Dependent Model
• Much faster time scale used in STDP
• Can model different kind of synapses with
  different filters easily

11
Overview

• Short Overview of different control methods
• Correlation Based Learning
• ISO Learning
• Comparison to other Methods (Wörgötter05)
• TD Learning
• STDP
• ICO Learning (Porr06)
• Learning Receptive Fields(Kulvicius06)

12
ICO (Input Correlation Only) Learning

• Drawback of Hebbian Learning
• Auto-Correlation can result in divergence even if
  x0 0
• ISO learning
• Relies on orthogonal filters of different inputs
• Orthogonal to its derivative
• Only works for if steady state is assumed
• Auto correlation does not vanish any more if the
  weights are changed during the impulse response
  of the filters
• -gt can not be applied for large learning rates
• gt Can be used only for small learning rates,
  otherwise Auto-Correlation causes divergence of
  the weights

13
ICO ISO Learning

• ISO Learning
• ICO Learning

14
ICO Learning

• Simple adaption of the ISO Learning rule
• Correlate only inputs with each other
• No correlation with the output
• -gt No Auto Correlation
• Define one Input as the reflex input x0
• Drawback
• Loss of Generality Not Isotropic any more
• Not all inputs are treated equally any more
• Advantage
• Can use much higher learning rates (up to 100x
  faster)
• Can use almost arbitrary types of filter
• No Divergence in weights any more

15
ICO Learning

• Weight change curve (open loop, just one Filter
  bank)
• Same as for ISO learning
• Weight changing curve
• ISO learning contains exponential instability
• Even after setting x0 to 0 after 100000 timesteps

16
ICO Learning Closing the Loop

• Output of learner v feeds back to its inputs xj
  after being modified by the environment
• Reactive Pathway Fixed Reactive Feedback control
• Learning Goal
• Learn earlier reaction to keep x0 (Disturbance or
  error signal) at 0
• One can proof that under simplified
• conditions that one shoot learning
• is possible
• With one filter bank, impulse signals
• Using Z-Transform

17
ICO Learning Applications

• Simulated Robot Experiment
• Robot has to find food (disks in the environment)
• Sensors for Uncondition Stimulus
• 2 Touchsensors (Left Right)
• Reflex Robot elicits a sharp turn as it touches
  a disk
• Pulls the robot into the centre of the disk
• Sensors for predictive Stimulus
• 2 Sound (Distance) Sensors (Left Right), Disks
• Can measure distance to the disk
• Stimulus Difference between Left Right sound
  signals
• Use 5 filters (resonators) in the filter bank
• Output v Steering angle of the Robot

18
ICO Learning Simulated Robot

• Only One experience has been sufficient to show
  an adapted behavior
• Only Possible with ICO learning

19
Simulated Robot

• Comparison for different Learning rates
• ICO Learning ISO Learning
• Learning was successful if for a sequence of four
  contacts
• Equivalent for small learning rates
• Small Auto correlation term

20
Simulated Robot

• Two Different Learning Rates
• Divergent Behavior of ISO learning for high
  learning rates
• Robot shows avoidance behavior from food disks

21
Applications continued

• More Complex Task
• Three food disks simultanously
• No simple relationship between the reflex input
  and the predictive input any more
• Superimposed Sound Fields
• Is only learned by ICO learning, not by ISO
  learning

22
ICO Real Robot Application

• Real Robot
• Target White disk from a distance
• Reflex Pulls the robot into the white disk just
  at the moment the robot drives over the disk
• Achieved by analysing the bottom-scanline of a
  camera
• Predictive input
• Analysing Scanline from the top of the image
• Filter Bank
• 5 FIR Filters with different filter length
• All coefficients set to 1 -gt smear out signal
• Narrow viewing angle of the camera
• Put robot more or less in front of the disk

23
ICO Real Robot Experiment

• Processing the input
• Calculate the deviation of the positions of all
  white points in a scanline to the center of the
  scanline
• 1D signal
• Results
• A before learning
• B C After learning
• 14 contacts
• Weights oscillate around
• their best values, but do
• not diverge

24
ICO Learning Other Applications

• Mechanical Arm
• Arm is always controlled with a PI controller to
  a specified set point
• Input of the PI controller Motor position
• PI controller is used as reactive filter
• Disturbance
• Pushing force of a second small arm mounted to
  the main arm
• Fast reacting touch sensors measures D.
• Use 10 resonator filters in the filter bank

25
ICO Learning Other Applications

• Result
• Control is shifted backwards in time
• Error signal (derivation to the set point) almost
  vanishes
• Other example Temperature Control
• Predict temperature changes caused by another
  heater

26
Overview

• Short Overview of different control methods
• Correlation Based Learning
• ISO Learning
• Comparison to other Methods (Wörgötter05)
• TD Learning
• STDP
• ICO Learning (Porr06)
• Learning Receptive Fields(Kulvicius06)

27
Development of Receptive fields through temporal
Sequence learning Kulvicius06

• Develop receptive fields by ICO learning
• Learn behavior and receptive fields simultanously
• Usually these 2 learning processes are considered
  seperately
• First approach where the receptive field and the
  behavior is trained simultanously!!
• Shows the application of ICO learning for high
  dimensional input spaces

28
Line Following

• System
• Robot should learn to better follow a line
  painted on the ground
• Reactive Input
• x0 Pixels at the bottom ot the image
• Predictive Input
• x1 Pixels in the middle of the image
• Use 10 different filters in the filter bank
  (resonators)
• Reflexive Output
• Brings robot back to the line
• Not a Smooth behavior
• Motor Output
• S Constant Speed
• v modifies speed and steering of the robot
• Use Left-Right symmetry

29
Line Following

• Simple System
• Fixed sensor banks, all pixels are summed up
• Input x1 predicts x0

30
Line Following

• Three different Tracks
• Steep, Shallow, Sharp
• For one learning experiment always the same track
  is used
• Robot steers much smoother
• Usually 1 trial is enough for learning
• Videos
• Without Learning
• Steep
• Sharp

31
Line Following Receptive Fields

• Receptive fields
• Use 225 pixels for the far sensors
• Use individual filter banks for each pixel
• 10 filters per pixel
• Left-Right Symmetry
• Left Receptive field is a mirror of the right

32
Line Following Receptive Fields

• Results
• Lower learning rates have to be used
• More trials are needed (3 to 6 trials)
• Different RFs are learned for different tracks
• Steep and Sharp Track, Plots show the sum of all
  filter weights for one pixel

33
Conclusion

• Correlation Based Learning
• Tries to minimize the influence of disturbances
• Easier to learn than Reinforcement Learning
• The framework is less general
• Questions
• When to apply Correlation Based Learning and when
  Reinforcement Learning
• How is it done by Animals/Humans?
• How can these two methods be combined
• Correlation learning in early learning stage
• RL for fine tuning
• ICO Learning
• Improvement of ISO learning
• More Stable, higher learning rates can be used
• One Shoot Learning is possible

34
Literature

• Porr05 F. Wörgötter and B. Porr, Temporal
  Sequence Learning, Prediction and Control, A
  Review of different control methods and their
  relation to biological mechanisms
• Porr03 B. Porr, F. Wörgötter, Isotropic
  Sequence Order Learning
• Porr06 B. Porr, F. Wörgötter, Strongly
  improved stability and faster convergence of
  temporal sequence learning by utilising input
  correlations only
• Kulvicius06 T. Kulvicius, B. Porr and F.
  Wörgötter, Behaviourally Guided Development of
  Primary and Secondary Receptive Fields through
  temporal sequence learning
