Title: 2005/06 Capstone Avionics Systems Team Project


1

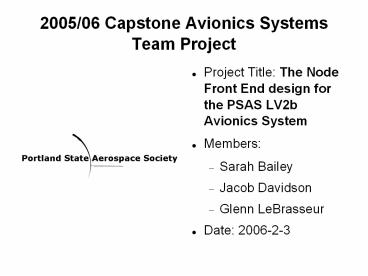

2005/06 Capstone Avionics Systems Team Project
  • Project Title The Node Front End design for the
    PSAS LV2b Avionics System
  • Members
  • Sarah Bailey
  • Jacob Davidson
  • Glenn LeBrasseur
  • Date 2006-2-3

2
2005/06 Capstone Project Team
  • Team members
  • Sarah Bailey
  • Jacob Davidson
  • Glenn LeBrasseur
  • Industry sponsor
  • Andrew Greenberg
  • Faculty advisor
  • Mark Faust

3
Who are our customers?
  • Our single customer is the Portland State
    Aerospace Society (PSAS)
  • PSAS is currently in the process of designing
    their fourth rocket or launch vehicle (LV) titled
    LV2b
  • Our Capstone Team will produce the interface
    electronics of all of the LV's avionics systems

4
Redesign of a network based open avionics system
  • What is it?
  • The common electronics which will control the
    interfacing of the various LV avionics systems
  • Why is it needed?
  • To ensure the integrity of the data the rocket
    generates and its safe recovery from a flight,
    all systems within the rocket must reliably
    interface with each other
  • What needs to be done?
  • Design and build the interface circuitry
  • What will be produced?
  • A two-layer PCB containing the electronics
    implementing the interface

5
Who is the Portland State Aerospace Society
(PSAS)?
  • Founded in 1997
  • First US student chapter of the Aerospace and
    Electrical Systems Society (AESS) which is a
    technical society of the Institute of Electrical
    and Electronics Engineers (IEEE)
  • As far as the group knows, they are the most
    advanced amateur rocket group in the world
  • PSAS designs, builds and launch amateur rockets
    or launch vehicles (LV) into the lower atmosphere

6
What is the purpose of PSAS and their objectives?
  • Pioneering active guidance and open source
    software and hardware aerospace systems
  • Long term goal
  • Design, build and put a nanosatellite into
    Earth orbit

7
What are the future plans for PSAS?
  • Design their fourth rocket, LV2b, which will be a
    research platform for active guidance
  • The rocket will consist of a network of nodes,
    each doing a specific function
  • The following is the block diagram of the LV2a
    avionics system

8
We are going to redesign the old node interface
of each node
9
LV2b nodes
  • MASTER NODE Flight Computer (FC)
  • Amateur TV (ATV)
  • Inertial Measurement Unit (IMU)
  • Global Positioning System/Satellite (GPS)
  • Environmental Sensors
  • Magnetometer
  • Recovery Node

10
Where does the Capstone team fit into PSAS plans?
  • We are in charge of designing the common
    electronics that run all of the avionics nodes
  • Called a node front end, it includes
  • 32-bit microcontroller
  • Switching power supply
  • Communication bus interface

11
Block diagram of LV2b Node Front End
LV2b Avionics Node
Switching power supply
Application specific circuits (e.g. IMU, GPS)
32-bit microcontroller
Node Front End
Power bus
Comm bus
12
What are the deliverables required of the
Capstone Team?
  • Design of the node front end
  • Schematic capture and PCB layout
  • Design notes
  • Front End prototype which includes
  • Commercially built two-layer PCB
  • Populated and tested components
  • A white paper of the node front end design

13
What is the Node Front End?(Example Recovery
Node)
14
What is the Node Front End?
  • Designed for PSAS
  • Used with every Avionics Node
  • Communications relay
  • Local processor for sensor data
  • Supplies power

15
Node Front End Environment
  • Rocket Environment
  • -5o C to 40o C
  • Intense vibration
  • Acceleration up to 20 g
  • EMI (10MHz to gt 2.4GHz)
  • Test Environment
  • frequent handling and transport
  • frequent power and communications
    connect/disconnect

16
Front End Constraints
  • Should be lt 150
  • Must be very robust
  • Immune to EMI
  • 1" x 2" in size
  • lt 0.5" thick
  • Power consumption lt 190mW
  • Condition power bus (10-20V) to required voltages
    for the node

17
Parts Constrains
  • Parts should be
  • surface mount
  • able to be routed on a two-layer board
  • connectors should lock down during flight
  • Board may have a conformal coating
  • Redundant external connectors

18
Reproducibility
  • COTS components
  • open source or free software
  • documentation
  • PSAS wiki
  • design notebook
  • white paper

19
Power Supply Requirements
  • must condition 10V to 20V input to required node
    voltage
  • gt 70 efficiency
  • EMI from supply should not interfere with other
    systems
  • external shutdown control
  • undervoltage lockout
  • overvoltage protection
  • current limited

20
Communications Bus Hard Requirements
  • Must handle
  • EMI
  • shorts and opens on PHY layer
  • acceleration and vibration
  • Must prioritize messages
  • System critical messages should be sent, even at
    the expense of non-critical messages
  • bandwidth gt 1Mbps

21
Communications Bus Soft Requirements
  • Shoulds
  • software handling retransmission
  • Faulty nodes can be shut down by FC
  • previous use in critical real-time systems
  • easy interface to laptops
  • node controllers flashed over bus
  • existing bus protocol drivers

22
CAN vs. USB
  • differential bus
  • 1Mbps
  • CAN in cars
  • message-by-message prioritization
  • peer-to-peer
  • automatic retransmission
  • differential bus
  • 12Mbps
  • USB in medical devices
  • bandwidth prioritization
  • mastered bus
  • depends on transfer type

23
CAN vs. USB
  • laptop interfaces through special hardware
  • PSAS members wrote CAN drivers for PIC
  • no CAN drivers for Linux or eCos
  • laptop can directly plug into the bus
  • local contacts who wrote USB drivers
  • Linux has many USB drivers
  • eCos has hardware-independent USB driver framework

24
Microcontroller Requirements
  • Needs
  • 32-bit, gt 128K flash, gt 32K SRAM
  • gt 10 MIPS (around 60 MIPS is the goal)
  • OSS tools like gcc, gdb, or binutils
  • open debugger protocol (e.g. JTAG)
  • Usable packaging
  • QFP, less than 144 pins (64 pins is ideal)
  • BGA lt 32 pins (with commercial mounting)
  • communication bus connection (USB or CAN)

25
Microcontroller Requirements
  • Wants
  • multiple implementations from more than one
    manufacturer
  • integer math ALU, 10 bit ADC, 3 PWM, watchdog
    timer, brown out reset
  • reasonable voltage requirements (3.3V only or
    3.3/5V)
  • existing open source RTOS, like eCos
  • low power modes
  • low cost
