A biophysical approach to predicting intrinsic and extrinsic nucleosome positioning signals

1

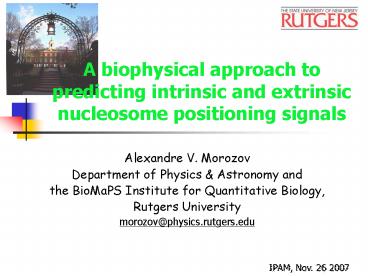

A biophysical approach to predicting intrinsic
and extrinsic nucleosome positioning signals

• Alexandre V. Morozov
• Department of Physics Astronomy and
• the BioMaPS Institute for Quantitative Biology,
• Rutgers University
• morozov_at_physics.rutgers.edu

IPAM, Nov. 26 2007
2
Introduction to chromatin scales
Electron micrograph of D.Melanogaster chromatin
arrays of regularly spaced nucleosomes, each 80
A across.
3
Overview of gene regulation
RNA Pol II TAFs
mRNA
Gene
TF1
TF2
TF3
Nucleosomes

• Prediction and design of gene expression levels
  from
• DNA sequence
• Prediction of transcription factor and nucleosome
  occupancies in vitro and in vivo from genomic
  sequence
• Prediction of levels of mRNA production from
  transcription factor and nucleosome occupancies

4
Data for modeling eukaryotic gene regulation

• Available data sources
• DNA sequence data for multiple organisms
• Genome-wide transcription factor
• occupancy data (ChIP-chip)
• Structural data for 100s of protein-DNA
  complexes
• Nucleosome positioning data MNase digestion
  sequencing or microarrays

accagtttacgt
5
Biophysical picture of gene transcription
Wray, G. A. et al. Mol Biol Evol 2003 201377-1419
6
Chromatin Structure Nucleosomes
7
Structure of the nucleosome core particle (NCP)
Left-handed super-helix (1.84 turns, 147 bp, R
41.9 A, P 25.9 A) PDB code 1kx5
T.J.Richmond K.Luger et al. Nature 1997 (2.8
?) T.J.Richmond C.A.Davey Nature 2003 (1.9 ?)
8
Gene regulation through chromatin structure

• Transcription factor DNA interactions are
  affected by the chromatin
• Chromatin remodeling by ATP-dependent complexes
• Histone variants (H2A.Z)
• Post-translational histone modifications
• (histone code)

H2A
H3
H4
H2B
H3 tail
9
Experimental validation of thehistone-DNA
interaction model
Jon Widom

• Adding key dinucleotide motifs increases
  nucleosome affinity
• Deleting dinucleotide motifs or disrupting their
  spacing decreases affinity

dyad
38
48
58
68
78
88
98
108
118
128
138
8
18
28
10
Histone-DNA interaction model and DNA flexibility

• Nucleosome affinity depends on the presence and
  spacing of key dinucleotide motifs (e.g. TA,CA)
• Nucleosome affinity can be explained by DNA
  flexibility

11
Base-pair steps are fundamental units for DNA
mechanics
12
Data-driven model for DNA elastic energy (DNABEND)
Geometry distributions for TA steps in
100 non-homologous protein-DNA complexes

• Quadratic sequence-specific
• DNA elastic energy
• mean lt?gt
• width lt(? - lt?gt)2gt-1
• Matrix of force constants F

W.K. Olson et al., PNAS 1998
13
Elastic rod model
DNA looping induced by a Lac repressor tetramer
14
Elastic energy and geometry of DNA constrained to
follow an arbitrary curve (DNABEND)
?r
Sequence-specific DNA elastic energy
Constraint energy
Minimize to determine energy geometry
System of linear equations ½ x 6Nbs x 6Nbs
15
Example of DNA geometry prediction nucleosome
structure
Ideal superhelix
Prediction for NCP (1kx5)
16
Predictions of nucleosome binding affinities

• Experimental techniques
• nucleosome dialysis
• A.Thastrom et al., J.Mol.Biol. 1999,2004
• P.T.Lowary J.Widom, J.Mol.Biol. 1998
• nucleosome exchange
• T.E.Shrader D.M.Crothers PNAS 1989
• T.E.Shrader D.M.Crothers J.Mol.Biol. 1990

Alignment model (Segal E. et al. Nature 2006)

Collect nucleosome-bound sequences in yeast
Center align sequences
Construct nucleosome-DNA model using observed
dinucleotide frequencies
17
Alignment Model (in vivo selection)
MNase digestion
Extract DNA, clone into plasmids
Sequence and center-align
AGGTTTATAG.. AGGTTAATCG.. AGGTAAATAA.. ..
142-152 bp
Di-nucleotide log score
18
From nucleosome energies to probabilities and
occupancies
Nucleosome energy
Chromosomal coordinate
Use dynamic programming to find the partition
function and thus
probabilities and occupancies of each
DNA-binding factor, e.g. nucleosomes
Nucleosome Probability Occupancy
Chromosomal coordinate
19
Nucleosome occupancy is dynamic
Nucleosome-free site
TGACGTCA
Nucleosome-occluded site
TGACGTCA
Nucleosome is displaced by the bound TF
TGACGTCA
20
Nucleosome occupancy of TATA boxes explains gene
expression levels
21
Nucleosome occupancy in the vicinity of genes
22
Nucleosome occupancy in the vicinity of TATA
boxes default repression
TATA
23
Functional sites by ChIP-chipin vivo
genome-wide measurementsof TF occupancy

• Genome-wide occupancies for 203 transcription
  factors in yeast by ChIP-chip (Harbison et al.,
  Nature 2004 Transcriptional regulatory code)
• MacIsaac et al., BMC Bioinformatics 2006 An
  improved map of phylogenetically conserved
  regulatory sites
• (98 factor specificities 26 more from the
  literature)

24
Nucleosome occupancy of transcription factor
binding sites default repression

• ltOcc(functional sites)gt - ltOcc(non-functional
  sites)gt
• In vitro nucleosomes compete for DNA sequence
  only with each other

DNABEND Nucleosomes
p lt 0.05
25
Nucleosome occupancy of transcription factor
binding sites

• ltOcc(functional sites)gt - ltOcc(non-functional
  sites)gt
• In vivo nucleosomes compete for DNA sequence
  with TFs

DNABEND Nucleosomes TFs
p lt 0.05
26
Functional transcription factor sites are
clustered
DNABEND Nucleosomes TFs, randomized functional
sites
p lt 0.05
functional sites
non-functional sites
Clustering!
27
Functional transcription factor sites are not
occupied by nucleosomes in vivo
Yuan et al. microarray experiment DNABEND
Transcription Factors DNABEND Alignment model
28
Nucleosome-induced cooperativity
Nucleosome-occluded TF sites no separate binding
TGACGTCA
TAAGGCCT
Nucleosome-occluded TF sites cooperative binding
TAAGGCCT
TGACGTCA
Miller and Widom, Mol.Cell.Biol. 2003
29
Nucleosome occupancy of TF sites in a model system
TF sites
pCYC1
30
Nucleosome-induced cooperativityexample
31
Nucleosome position predictionsGAL1-10 locus
GAL1
GAL10
Nucleosomes in vitro Nucleosomes in vivo TBP GAL4
32
Nucleosome position predictionsHIS3-PET56 locus
Nucleosomes in vitro Nucleosomes in vivo TBP GCN4
33
Conclusions

• Predicted histone-DNA binding affinities and
  genome-wide nucleosome occupancies using a DNA
  mechanics model a thermodynamic model of
  nucleosomes competing with other factors for
  genomic sequence
• Chromatin structure around ORF starts is
  consistent with microarray-based measurements of
  nucleosome positions, and can be explained with a
  simple model of nucleosomes phasing off bound
  TBPs
• Nucleosome-induced cooperativity (brought about
  by clustering of functional transcription factor
  binding sites) is responsible for the increased
  accessibility of functional sites

34
Future Directions

• Lots of nucleosome positioning sequences soon
  to become available can a better model of
  dinucleotide (base stacking) energies be built?
  Anirvan Sengupta, Rutgers
• Can such a model be used to inform a better DNA
  mechanics model? Conversely, can a DNA mechanics
  model be compressed, i.e. encapsulated in a
  simple set of dinucleotide energies? Anirvan
  Sengupta, Rutgers
• DNABEND extensions to non-nucleosome systems,
  i.e. nucleoid proteins, DNA loops etc.? John
  Marko, Jon Widom, Northwestern
• Prediction of in vivo nucleosome positions in
  gene expression libraries Ligr et al., Genetics
  2006 random libraries of yeast promoters Lu Bai
  et al., unpublished

35
Acknowledgements

• PEOPLE
• Eric Siggia (Rockefeller University)
• Jon Widom (Northwestern University)
• Harmen Bussemaker (Columbia University)
• FUNDING
• Leukemia Lymphoma Society Fellowship
• BioMaPS Institute, Rutgers University

36
Nucleosome occupancy of chromosomal regions
37
Induced periodicity of stable nucleosomes
stable
stable
38
Nucleosome position predictionssummary
