Earth, Moon and Mars: How They Work

1

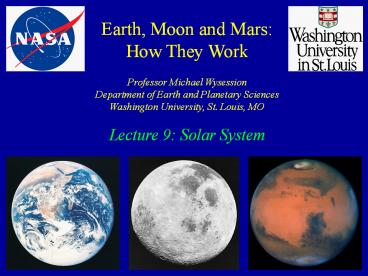

Earth, Moon and Mars How They Work
Professor Michael Wysession Department of Earth
and Planetary Sciences Washington University, St.
Louis, MO Lecture 9 Solar System
2
(No Transcript)
3

• Three lines of evidence for the Big Bang
• Doppler shift of stars
• Background microwave radiation
• Composition of the universe
• (Big Bang Nucleosynthesis - 3-20 minutes)

4
Cosmic Microwave Background, un-enhanced (COBE
satellite)
5
Cosmic Microwave Background, variations enhanced
(WMAP Wilkinson Microwave Anisotropy Probe -
satellite)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Milky Way
17
Milky Way
18
Andromeda
19
(No Transcript)
20

• Nucleosynthesis
• Stellar nucleosynthesis makes elements up to
  iron during last stages of a star
• Explosive nucleosynthesis makes elements
  larger than iron (from free neutrons) during
  supernova for large stars

21
Nucleosynthesis D D ? He He He ? Be Be He
? C C He ? O C C ? Mg O C ? Si (etc.)
22
Red Giant Betelgeuse
23
Hourglass Nebula - collapsed white dwarf - gas
ejected after red giant phase
24
Death of a star
25
Helix Nebula - collision of two gas ejections
from a dying star
26
Eagle Nebula
27
Eagle Nebula - Star birth clouds. UV radiation
from nearby hot stars is eroding and condensing
clouds of cool hydrogen gas that is an incubator
for new stars
28
(No Transcript)
29
Helix Nebula cometary knots
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Collapse in 100,000 yrs 15,000 AU cloud to
1-AU-thick solar nebula Temperatures were gt500C
in inner solar system
34
(No Transcript)
35
(No Transcript)
36
Carbonaceous chondrites Primitive
planetesimals Ordinary chondrites (Types
3-6) Metamorphosed planetesimals
37
Iron meteorites Core of differentiated
planetesimals Achondrites (Howardites,
Eucrites, Diogenites) Crust of differentiated
planetesimals
38
Different temperatures in the protoplanetary disk
with distance from the sun --gt determined history
of planetary formation
39
Gas, water, volatiles driven out to snow line
at about 5 AU -- depleted in inner nebula Likely
associated with T-Tauri phase of Sun Allowed
rapid (10,000 yr) runaway growth of 10-20
Earth-mass core allowing capture of gas before
nebula dispersed --gt Jupiter Cores of Saturn,
Uranus, Neptune likely formed in the same region,
gravitationally dispersed by Jupiter Inner
planets formed later, from dry refractory
materials Water now on EarthMars likely accreted
later by drift back of icy planetesimals or
comets flung from region of Jupiter Late Heavy
Bombardment Jupiter/Saturn in 2-1 resonance
40

• Sources for heat of early terrestrial planets
• Impacts of planetesimals
• 2. Gravitational collapse
• 3. Compression
• 4. Radioactive decay of short-lived isotopes
• 5. Collapse of iron core
• 6. (For Earth) Impact of proto-moon

41
(No Transcript)
42
Sun is 99.85 of mass of the Solar System
43
Suns magnetic polarity flips regularly with
22-year cycle. Magnetic field is concentrated by
1000x in center of sunspots. Suns luminosity
has increased by 30 since its birth --- now
grows by 1 every 100 Myr. May cause a runaway
Greenhouse on Earth in 500 Myr that will
extinguish multicellular life.
44
MERCURY Mass 5.5 of E Density 98.4 of E R
2440 km g 37.8 of E
45
Mercury Mariner 10, MESSENER
46
Liquid outer core generates magnetic field
47
Surface T 80K to 700K
48
Trace water amounts may survive in
permanently-shadowed craters
49
Evidence of volcanism - low-Fe basaltic shield
volcano, 100-km across
50
Plentiful scarps suggest planetary contraction
51
Caloris antipode suggests focusing of seismic
waves
52
VENUS Mass 81.5 of E Density 95.1 of E R
6052 km (95 of E) g 90.5 of E
53
No rotation - no magnetic field No water - no
asthenosphere - no plate tectonics Atmosphere -
92 bars 96.5 CO2 Mean T 464ºC
54
10,000s of shield volcanoes only 1000 craters
55
Venera Blocky plate-like rocks and soils
56
Coronae Related to upwelling? Evidence of mantle
plumes?
57
Tessera Continental composition? Predate
volcanic plains?
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
Dynamic history ? Catastrophic resurfacing
ended rapidly quiet since? ? Episodic plate
tectonics punctuated by one-plate dynamics and
quiet periods (like now)? ? One-plate dynamics
with periodic overturns due to gravitational
instability? ? Transition from plate-tectonic
mobile-lid regime to quiet stagnant-lid
regime? (Earths future?)
62
JUPITER Period 11.86 yrs SATURN Period
29.46 yrs However, at some point in a 21
resonance Destabilized solar system Late
Heavy Bombardment
63
(No Transcript)
64
Red Spot 23,000 km-long hurricane (at least 180
yrs old)
65
Io, Europa, Ganymede in 421 resonance of orbits
66
(No Transcript)
67
Io 100s of volcanoes active at any time Lava is
both basalt and sulfur Orbital resonance of moons
causes their orbits to greatly fluctuate --gt
large tidal stresses Boosaule Mons 16.7 km high
non-volcanic mountain
68
(No Transcript)
69
Europa Liquid ocean gt150 km thick Very few
impacts suggests that the crust is young and
constantly reworked
70
Fractures form arcs in response to Jupiters
tidal stresses suggests icy crust is thin
71
Cassinis voyage to Saturns moon Titan.
72
Titan only moon with a substantial atmosphere
(nitrogen)
Liquid methane on a water-ice surface?
73
A 360-deg panoramic view of the terrain around
Huygens' landing site. The white streaks might be
a ground 'fog' of methane or ethane vapor. The
temperature of the landing site itself was minus
291 degrees F. The soil has the consistency of
wet sand or clay and is covered by a thin crust
74
From an altitude of 16 km, Huygens photographed
these drainage channels leading to a shoreline.
75
Enceladus caught in gravitational resonance with
larger Dione large orbit swings cause large
tidal heating and ice geysers
76
ICY GIANTS
77
Neptune's moon Triton - so cold (minus -391?F)
its surface contains frozen nitrogen. Largest
moon to orbit in a retrograde direction.
78
(No Transcript)
79
(No Transcript)
80
Kuiper Belt
81
(No Transcript)
82
(No Transcript)
83
ASTEROIDS
Eros The solar systems snow line could have
been close to Mars, so many asteroids are
probably icy
84
ASTEROIDS (Itokawa)
85
COMETS
and Deep Impacts collision with Comet Tempel 1
showed that comets can be more like asteroids
86
Comet West
87
(No Transcript)
