JLOTS PM5 BRIEF

1

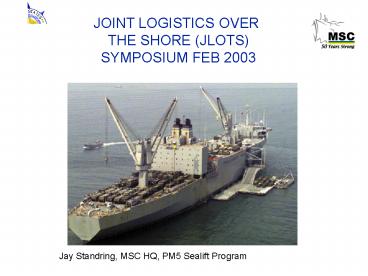

JOINT LOGISTICS OVER THE SHORE (JLOTS) SYMPOSIUM
FEB 2003

Jay Standring, MSC HQ, PM5 Sealift Program
2
AGENDA

• MSCs Roles in JLOTS Operations

• Planning Factors for MSC JLOTS
• Capable Ships

3
MSCs Two JLOTSRoles

As a SecNav Force Provider
Provides assault ships to CATFs and follow-up
shipping to Navy element commanders in support
of Amphibious Operations.
As USTCs Navy Transportation Component
Commander
Provides Strategic Sealift in support of
Combatant Commanders OPLAN Deployment and
Sustainment requirements.
4
Command Relationships
SECDEF
SECNAV
CJCS
Unified Commanders
USTRANSCOM
CNO
ASN (RDA)
Navy Component Commands
Navy Transportation Component Commander
Type Commander for PREPO, NFAF Special Mission
Head of Contracting Activity
COMSC
5
MSC Area Commands
COMSCLANT
COMSCFE
Norfolk
San Diego
Bahrain
Naples
Yokohama
COMSCPAC
COMSCCENT
COMSCEUR
6
What MSC Brings to JLOTS
Staging or Marshalling Area
LCU-2000
Staging or Marshalling Area
LCM-8
MSOC
JLCC (Joint literage control center)
LCU-2000
ELCAS (Elevated Causeway)
Staging or Marshalling Area
K
IPDS
7
APSRON MPSRONS
MPSRON Two
8
MSC Surge Ships(LMSRs FSS)
9
RRF Ro/Ro, Crane Other Ships
Great Teamwork between MARAD MSC !
10
OPDS Tanker
OPDS Offshore Petroleum Discharge System
11
MSC Surge JLOTS ShipPlanning Factors

• Vessel Cargo Capacity Max Speed (cruising)
• FSS 150K sq. ft. 27 Knots (17)
• LMSR 300K sq.ft. 24 Knots (17)
• MARAD
• RRF Ro/Ro 100K sq.ft. (and ) 14 Knots ()
• FSS LMSRs are layberthed USEC USGC, MARAD RRF
  are layberthed all coasts

12
FY 03 JCSPer Diem Billing Rates

• Vessel type/status 03
• FSS FOS 65,610
• LMSR FOS 65,610
• MARAD RRF
• Ro/Ro other 25K/day fuel costs port costs
  activation/deactivation costs misc
  costs
• FOS Full Operating Status (underway/activated
  on berth)

13

MSC Tankers

• 5 T-5 Tankers (normally one in each AOR)
• Commercial charters to meet additional
  requirements
• OPDS Tankers
• Fuel
• Potable Non-potable water

14
Surge Force Layberths

Note Many MARAD RRF ships are ROS-5
Tacoma, WA R - Cape Intrepid 4 R - Cape Island 4
Bremerton, WA T - Beaver State 5 T- Green
Mountain State 5
Vallejo, CA TP - Golden Bear 10
Buzzards Bay, MA B - Cape Bon - NDRF
Fort Schuyler, NY TP Empire State 10
Suisun Bay, CA B - Cape Breton 10 L - Cape Fear
10
Baltimore, MD B - Cape Alexander 5
MCDS B - Cape Avinof 5 Consol S - Cape May 5 R
- Cape Washington 5 R - Cape Wrath 5 A - Wright
5 LM - SEAY 4 LM - FISHER 4
Staten Island, NY FSS - Denebola 4
San Francisco R - Adm Callaghan 4 R - Cape Henry
5 R - Cape Horn 4 R - Cape Hudson 4 R - Cape
Orlando 4 S - Cape Mohican 5 OP - Mount
Washington 5
Cheatham Annex T - Cornhusker State 5 T -
Flickertail State 5
James River B - Cape Ann 10 Consol B
- Cape Archway 10 Consol B - Cape Nome 10 S -
Cape Mendocino 10 R - Cape Lambert 10 R - Cape
Lobos 10
Norfolk, VA LM - Gilliland 4 LM - Yano 4 FSS -
Regulus 4
Alameda, CA B - Cape Blanco 5 B - Cape Borda
5 B- Cape Bover 5 B - Cape Gibson 5 MCDS B -
Cape Girardeau 5 MCDS R - Comet 10 R - Meteor
10 T - Gem State 5 T - Grand Canyon State 5 T -
Keystone State 5
Long Beach R - Cape Inscription 5 R - Cape Isabel
5
Newport News, VA LM-Gordon 4 LM-Shughart 4
San Diego A - Curtiss 5
Charleston, SC R - Cape Decision 4 R - Cape
Diamond 4 R - Cape Domingo 4 R - Cape Douglas 4 R
- Cape Ducato 4 R - Cape Edmont 4
Houston, TX R - Cape Taylor 4 R - Cape Texas 4 R
- Cape Trinity 4 OP - Potomac 5 T - Diamond State
5 T - Equality State 5
New Orleans R - Cape Kennedy 4 R - Cape Knox
4 FSS - Bellatrix 4 FSS - Altair 4
PREPO - Diego Garcia B - Cape Jacob MCDS OP -
Chessapeake PREPO - Guam T - Gopher State OP -
Petersburg
Portsmouth, VA R - Cape Race 4 R - Cape Ray
4 R - Cape Rise 5
Violet, LA B - Cape John 5 MCDS FSS -
Algol 4 FSS - Pollux 4
Jacksonville, FL FSS - Capella 4 FSS-Antares 4
Wilmington, NC B-Cape Johnson 5 MCDS B-Cape Juby
5 MCDS

Beaumont L - Cape Farewell 10 O -
Mission Buenaventura 20 L - Cape Flattery 10
O - Mission Capistrano 20 L - Cape
Florida 10
Port of Beaumont R - Cape Victory 4 R - Cape
Vincent 4
15
MSC JLOTS SHIPS

LOA 950
Ft DRAFT 35
Ft SOA 22-24
Kts RANGE 12,000
Nm CARGO SqFt 385,000 SqFt TEU
510 BBLS CRANES
4 X 57 LT
-2 X 113 LT
-1 X 225 LT RAMP(S)
1 X 160 ST (P/S)
1 X 160 ST (Slewing
Stern)
USNS BOB HOPE T-AKR (LMSR)
16
MSC JLOTS SHIPS

LOA 946
Ft DRAFT 37
Ft SOA 27 - 33
Kts RANGE 13,250 Nm CARGO
SqFt 203,000 SqFt TEU
225 BBLS CRANES
2 X 35 LT
-1 X 70 LT
2 X 50 LT
-1 X 100 LT RAMP(S)
1 X 90 LT (P/S) Pierside
72 LT (Sea State 3)
USNS ALGOL T-AKR (FSS)
17
MSC JLOTS SHIPS

LOA 750
Ft DRAFT 35
Ft SOA 21
Kts RANGE 15,600 Nm CARGO
SqFt 215,000 SqFt TEU
663 BBLS CRANES
1 X 40 LT
RAMP(S) 1 X 64 LT
(Fixed Stern)
CAPE HENRY (MARAD Ro/Ro) T-AKR
18
MSC JLOTS SHIPS

LOA 635
Ft DRAFT 30
Ft SOA 20
Kts RANGE 14,500 Nm CARGO
SqFt 169,500 SqFt TEU
310 BBLS CRANES
1 X 35 LT
RAMP(S) 2 X 90 LT
(P/S Slewing)
CAPE ORLANDO (MARAD Ro/Ro) T-AKR
19
MSC JLOTS SHIPS

LOA 610
Ft DRAFT 32
Ft SOA 21
Kts RANGE 12,000 Nm CARGO
SqFt 32,250 SqFt TEU
500 BBLS CRANES
4 X 30 LT
-2 X 60 LT
-1 X 120 LT
GOPHER STATE (MARAD Crane Ship) T-ACS
20
MSC JLOTS SHIPS

LOA 614
Ft DRAFT 36
Ft SOA 16
Kts RANGE 10,000 Nm CARGO
SqFt TEU BBLS
240,000 (2 have RAS capability)
M/V SAMUEL L COBB T-AO
21
MSC JLOTS SHIPS

LOA 736 Ft DRAFT
40 Ft SOA
14 Kts RANGE
6,042 Nm CARGO SqFt TEU BBLS
278,000
S/S CHESAPEAKE MARAD OPDS Tanker T-AO (OPDS)
22
MSC JLOTS SHIPS

LOA 673
Ft DRAFT 32
Ft SOA 19
Kts CARGO SqFt 152,185 SqFt TEU
580 BBLS CRANES
5 X 40 LT
-2 X 80 LT RAMP(S)
1 X 70 LT (Stern Slewing)

M/V 2nd LT JOHN P BOBO, MSC MPS T-AK
23
MSC JLOTS SHIPS

LOA 598
Ft DRAFT 32
Ft SOA 18
Kts RANGE 12,000 Nm CARGO
SqFt 33,000 SqFt TEU
426 BBLS CRANES
4 X 30 LT
- 2 X 60 LT
- 1 X 120 LT
2 X 16 (1 X 32) LT RAMP(S)
1 X 65 LT
MAERSK CONSTELLATION Ro/RO
Combination (Commercial Charter Example)
24
In Conclusion

What does MSC bring to a JLOTS Operation
ORGANIZATION
A FLEXIBLE - TAILORABLE ORGANIZATION CAPABLE OF
PROVIDING THE COMBATANT COMMANDER WITH FULLY
EFFECTIVE SEALIFT SUPPORT. The RIGHT SHIP in the
RIGHT PLACE at the RIGHT TIME
25
MSC HQ POCs

• Jeff Connolly, PM52 Cargo Project Officer x6304
  jeff.connolly_at_navy.mil
• Tim Pickering, PM52 Cargo Operations Manager,
  x5810 timothy.pickering_at_navy.mil
• Jay Standring, PM52, Sealift Program
  JLOTS/Flo-Flo/Heavy Lift, x5804
  jay.standring_at_navy.mil
• All phones DSN 325-XXXX, Commercial 202-685-XXXX

26
Other MSC POCs
Organization Name DSN/Comm
E-Mail
MSCLANT Rick Caldwell
646-5641 /[phone]
rick.caldwell_at_msc.navy.mil MSCEUR Lt
David Durazzo 314-626-3793/39-081-568-3793
durazzod_at_msc.naples.navy.mil MSCPAC Tom
Brown 534-9659/[phone]
tom.brown_at_mscwest.msc.navy.mil MSCFE
Brian Tully
315-269-6335/81-311-769-6335
brian.tully_at_msc.navy.mil MSCCENT Neil
Heckman 318-439- 9482 / 973-82-9482
neil.heckman_at_msccent.msc.navy.mil
27
Questions ?
Ship schedules can be found at this classified
site www.msc.navy.smil.mil Click on the PM-5
Hotkey Please visit our unclassified website
at www.msc.navy.mil
