Title: Introduction to Surface Water Hydrology and Watersheds Lecture 1


1

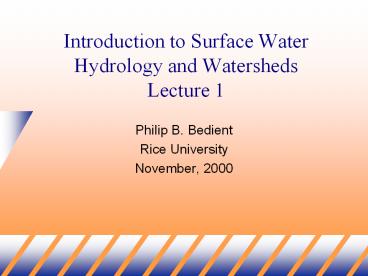

Introduction to Surface Water Hydrology and
WatershedsLecture 1
  • Philip B. Bedient
  • Rice University
  • November, 2000

2
The Hydrologic Cycle
3
Major Hydrologic Processes
  • Precipitation (measured at rain gage)
  • Evaporation or ET (loss to atmosphere)
  • Infiltration (loss to subsurface)
  • Overland Flow
  • Stream Flow (measured at stage gage)
  • Ground Water Flow

4
The Watershed or Basin
  • Area of land that drains to a single outlet and
    is separated from other watersheds by a drainage
    divide.
  • Rainfall that falls in a watershed will create
    runoff to that watershed outlet.
  • All other rainfall falling outside a basin will
    not affect the runoff response.

5
Brays Bayou Watershed
6
The Hydrograph
  • Graph of Discharge vs Time at a Single Location
  • Rising Limb, Crest Segment, Falling Limb,and
    Recession
  • Base Flow is Usually Subtracted to yield DRO
  • Peak Gives the Maximum Flow for the Event

7
The Hyetograph
  • Graph of Rainfall Rate vs Time at a Single Gage
  • Usually Plotted as a Bar Chart
  • Net Rainfall is Found by Subtr. Infiltration
    Losses
  • Integration of Net Rainfall in Time yields the
    Total Rainfall Vol (DRO) in inches over a
    Watershed

8
Runoff in an Urban Basin
  • A portion becomes pipe flow (storm water).
  • The remaining portion becomes overland flow in
    streets and yards.
  • The total runoff is the sum of both components

Overland Flow
Hydrograph
Outflow
Pipe Flow (SWWM)
Pipe Flow
Time
9
Harris Gully Watershed
Brays Bayou
10
Major Causes of Flooding(Excess Water that
Inundates)
  • Highly Developed (urbanized) Area
  • Intensity and Duration of Rainfall
  • Flat Topography with Little Storage
  • Poor Building Practices - Floodplains

11
Tailwater Effects
Ground surface
Bayou Water Level 3
HGL Surcharged Flow 2
HGL Surcharged Flow 1
Bayou Water Level 2
Top of Culvert
HGL Gravity Flow
Bayou Water Level 1
Flow
Bottom of Culvert
Incoming Culvert
Receiving Bayou
12
Mannings Equation
  • V Velocity of Flow, ft/s
  • n Mannings Roughness Coefficient
  • S Slope of Channel, ft/ft
  • R A/P, where
  • A Cross-sectional Area of Flow
  • P Wetted Perimeter of Channel

13
Backwater Calculation
z1 hp1 hL z2 hp2
Hydraulic Grade Line
hL
hp2
Flow
hp1
z2
z1
Datum (MSL)
14
HEC-HMS Model
  • Hydrologic Eng Center - Army Corps of Eng.
  • Converts Input rainfall into runoff hydrographs
  • Uses either historical data or design storms
  • Predicts the total outflow hydrograph for a basin

Losses Removed
Losses Removed
Surface Runoff
Routing
Surface Runoff

Combination
Q
t
15
HEC-HMS Theory
  • Input Rainfall
  • Loss Rate Function
  • Unit Hydrograph
  • Computes Runoff
  • Flood Routing
  • Combination Steps

Losses Removed
Losses Removed
Surface Runoff
Routing
Surface Runoff

Combination
Q
t
16
Loss Rate MethodInitial and Uniform Loss Rate
Method
  • Initial Amount Lost to Infiltration (in)
  • Soil is Saturated.
  • Uniform Loss of a Constant Rate (in/hr)

Example Initial Loss 0.5 in, Uniform Loss
0.05 in/hr
17
Unit Hydrograph Theory
  • The unit hydrograph represents the basin response
    to 1 inch of uniform net rainfall for a specified
    duration.
  • Linear method originally devised in 1932.
  • Works best for relatively small subareas.
  • Several computational methods exist.

18
Unit Hydrograph Method
  • Snyders Method (1938)
  • Clark TC R Method (1945)
  • Nash (1958)
  • SCS Method (1964)
  • Espey-Winslow (1968)

19
Surface Runoff TheoryClark TC R Method
Q
T
20
Clark UnitHydrograph Computation
21
Surface Runoff TheoryClark TC R Method
L channel length (mi) S slope of channel
(ft/mi) LCA length to centroid (mi) So
watershed slope (ft/mi)
So
channel
L1
S
outlet
LCA
L2
S
22
Surface Runoff TheoryClark TC R Method
  • TC Travel time of overland runoff from most
    remote point to the outlet
  • R Routing Coefficient Relates Storage and
    Outflow

where L channel length (mi) S slope of
channel (ft/mi) LCA length to centroid (mi) D
0.94 for developed watersheds of Solt20
ft/mi So watershed slope (ft/mi)
23
Effects of Stream Flow Routing
24
Routing Theory 1Muskingum Method
A
  • K Travel Time Through the Reach
  • x Weighting Factor (Storage Coefficient)
  • N Number of Steps in Computation

B
A
B
Outflow
Time
25
Routing Theory 2Modified Puls Method
A
  • Based on Mannings
  • Storage vs Outflow
  • Numerical Procedure
  • Inflows Converted to Outflows from Reach

B
A
B
Outflow
Time
26
Modified Puls (Storage)
  • Storage-Indication Relationship
  • Solved Numerically in Model

27
Obtaining Storage-Discharge Data
28
Combination StepSuperposition
29
Design Rainfalls
  • Design Storm from HCFCD and NWS
  • Based on Statistical Analysis of Data
  • 5, 10, 25, 50, 100 Year Events
  • Various Durations

30
Harris Gully Watershed
Brays Bayou
31
Rainfall and Runoff Response
Flow Measured from USGS Gage 403 Inside Harris
Gully
Rainfall Measured from USGS Gage 400 at Harris
Gully Outlet
February 12, 1997
32
Calibration Results
Average Errors Peak Flow 6 Volume
4 Peak Time 0.9 Hours
33
Verification Results
  • Volume Error Could Be Due to Unmeasured
    Quantities
  • Calibration Successful

34
Urban Basin - Low Flow
Rainfall Pattern
Inlets to Pipes
Pipe Elevations and Sizes
Bayou Level
Junction Locations
35
Urban Basin - Flood
Flooding Areas
High Bayou Level
Pipe Capacity
Backflow at Outlet
36
Harris Gully Models
  • Determine Pipe Capacities at Six Different
    Tailwater Elevations
  • DIVERT this Amount from Total Runoff Computed in
    HEC-HMS
  • HEC-HMS Model Computes Total Runoff, Subtracts
    Amount Diverted to Pipes, Remaining is Overland
    Flow

37
HEC-1 Diversion Operation
Total Runoff
Remaining Overland Runoff
Diversion to Pipes
capacity
38
Harris Gully at Brays Bayou
39
Overland Flow for Rising Brays Bayou
Rainfall 1.5 in/hr for 3 hours
40
Detention Pond Locations
41
Detention Pond Options
  • 1) 50 Acre-ft in Hermann Park
  • 2) 100 Acre-ft in Hermann Park
  • 3) 100 Acre-ft in Hermann Park
  • AND
  • 50 Acre-ft on Rice Campus

42
Pond Impact on Overland Volume
43
HEC-HMS Output
  • Tables
  • Summary
  • Detailed (Time Series)
  • Hyetograph Plots
  • Sub-Basin Hydrograph Plots
  • Routed Hydrograph Plots
  • Combined Hydrograph Plots
  • Recorded Hydrographs - comparison

44
Viewing Results
Hydrograph
45
HEC-HMS Output
  • Sub-Basin Plots
  • Rainfall
  • Hydrographs
  • Abstractions
  • Base Flow

46
Conclusions for Harris Gully
  • 67 Acre-ft Pond in Hermann Park AND 50 Acre-ft
    Pond at Rice University would have prevented 48
    of Overland Flow in March 1997 Storm
  • Ponds are imperative for Flood Relief!
