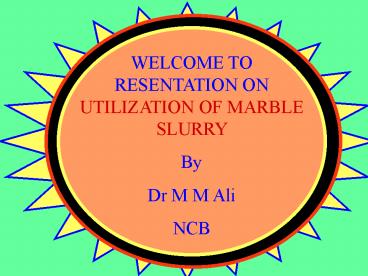

WELCOME TO RESENTATION ON UTILIZATION OF MARBLE SLURRY

1

WELCOME TO RESENTATION ON UTILIZATION OF MARBLE
SLURRY By Dr M M Ali NCB
2
GENERATION OF MARBLE INDUSTRY WASTE
(000Tonnes)
MARBLE PRODUCTION IN INDIA - 10 OF WORLD
PRODUCTION 95 IN STATE OF RAJASTHAN MARBLE
SLURRY GENERATION PER DAY - 200-250 TONNES
3
NCB
MARBLE SLURRY GENERATION AND PROPERTIES

• MARBLE MINES IN RAJASTHAN 4000
• MARBLE CUTTERS 2200
• BLADE THICKNESS OF GANG SAWS 5mm
• NORMAL MARBLE BLOCK SIZE 20mm THICK
• CUTTING OF 25 mm THICK MARBLE BLOCK RESULTS IN
  5mm THICK WASTE (20) AS POWDER REJECT (MARBLE
  SLURRY)
•

  CONTD.

4

• GENERATION 1.0 MT PER ANNUM
• BULK DENSITY 1.3-1.5 gm/cc
• SPECIFIC GRAVITY 2.83-2.87 gm/cc
• MOISTURE CONTENT 15-30
• QUALITY VARIATION -
• SiO2 5-13 , MgO 3-22 AND
  CaO 30 - 45

5
DISPOSAL OF MARBLE SLURRY AT SITE
6
MARBLE SLURRY SITE
7
NCB
PROBLEMS ASSOCIATED WITH MARBLE SLURRY DISPOSAL

• LAND OCCUPANCY
• AIR POLLUTION
• TOP SOIL PERMEABILITY IS REDUCED
• INFERTILITY / STERILITY OF SOIL AFFECTING
  VEGETATION
• MAY CAUSE AIR BORN DISEASES
• TOURISM AND INDUSTRIAL POTENTIAL AFFECTED
• DURING RAINY SEASON AFFECTS ROAD TRANSPORT

8
NCB
PROBLEMS IN UTILIZATION 0F MARBLE SLURRY

• HANDLING, STORAGE AND TRANSPORTATION
• QUALITY VARIATION
• LACK OF PROMOTIONAL EFFORTS
• LACK OF ENGINEERING SERVICES
• R D SUPPORT AND EXTENSION PROGRAMMES

9
NCB
MANAGEMENT OF MARBLE SLURRY

• USE OF SMALLER THICKNESS BLADES
• INSTALLATION OF FILTER PRESS TO RAISE THE SOLID
  CONTENT
• UTILIZATION OF MARBLE SLURRY IN MAKING VALUE
  ADDED PRODUCTS

10
NCB
POTENTIAL AREAS OF MARBLE SLURRY UTILIZATION

• AS FINE AGGREGATES IN ROAD CONSTRUCTION
• POLYMER BOUND COMPOSITES
• CEMENT BOUND BUILDING PRODUCTS SUCH AS DECORATIVE
  MARBLE COATINGS, BRICKS, TILES AND BOARDS
• LIME AND COLOUR WASHES
• CHEMICAL, COSMATICS AND PAINTS
• AS RAW MATERIAL IN CEMENT MANUFACTURE

11

MARBLE SLURRY IN ROAD CONSTRUCTION

• ABOUT 35 USED IN CONCRETE MIXES FOR ROAD
  PAVEMENT AS FINE AGGREGATE
• STRENGTH, ABRASION RESISTANCE AND DURABILITY OF
  CONCRETE IMPROVED BY THE ADDITION OF MARBLE DUST

12
PERFORMANCE OF MORTAR CUBE REPLACING 30 FINE
SAND BY MARBLE DUST
13
MARBLE SLURRY POLYMER COMPOSITES

• RESIN BOUND TILES WITH 50 MARBLE DUST
• CHARACTERISTICS
• Density 1.96 g/cm3
• Moisture content 0.20-0.40
• Tensile strength 23-25 MPa
• Comp.strength 77-96 MPa
• Water absorption (2hrs) 0.15-0.40

14

• CEMENT BOUND MARBLE DUST PRODUCTS
• Plaster Coatings Comparable to Natural Marble
• Cladding and Floor Tiles
• Bricks Boards
• BASIC APPROACH
• Consolidation of Marble Dust Particles by
• Compaction
• Inter- particle Bridging by Cement Bonding

15
SALIENT FEATURES OF PLASTER COATINGS DEVELOPED
16
(No Transcript)
17
SALIENT FEATURES OF TILES DEVELOPED
18

• TILES DEVELOPED WERE BASED ON
• MARBLE DUST - WHITE CEMENT
• MARBLE DUST-WHITE CEMENT - SAND
• MARBLE DUST CEMENT GYPSUM AND FLYASH
• MARBLE DUST - WHITE CEMENT-MARBLE CHIPS
• MARBLE DUST - OPC-MARBLE CHIPS

19
(No Transcript)
20
(No Transcript)
21
PERFORMANCE EVALUATION OF TILES
FLEXURAL STRENGTH 7-9 MPa
22
NCB
UTILISATION OF MARBLE SLURRY AS A RAW MIX
COMPONENT /OR AS AN ADDITIVE FOR THE
MANUFACTURE OF CEMENT (A STUDY SPONSORED BY
RSPCB, JAIPUR)
23
NCB
SCOPE OF WORK CARRIED OUT AT NATIONAL COUNCIL OF
CEMENT AND BUILDING MATERIALS (NCB), BALLABGARH

• COLLECTION OF MARBLE SLURRY SAMPLES FROM SIX
  MARBLE CLUSTERS AND OTHER RAW MATERIALS FROM SIX
  NEARBY CEMENT PLANTS
• CHARACTERIZATION OF ALL ABOVE SAMPLES
• DESIGNING OPTIMIZATION OF RAW MIXES USING
  MARBLE SLURRY AS RAW MIX COMPONENT
• PREPARATION OF CLINKER AND PERFORMANCE EVALUATION
  OF CEMENTS PREPARED
• PREPARATION AND PERFORMANCE EVALUATION OF
  CEMENT SAMPLES BY INTERGRINDING OF MARBLE
  SLURRY WITH PLANT CLINKER GYPSUM
• TECHNO ECONOMIC VIABILITY STUDY

24
IDENTIFICATION OF MARBLE CLUSTERS AND CEMENT
PLANTS
NCB
25

• SAMPLES OF MARBLE DUST COLLECTED FROM
• KISHANGARH (MS-1)
• RAJASMAND (MS-2 MS-3)
• UDAIPUR (MS-4 TO MS-7 )

26
CHEMICAL ANALYSIS
27
NCB
STUDY CARRIED OUT FOR MARBLE SLURRY
FROM RAJSAMAND MARBLE CLUSTER (MS-RS)
WITH RAW MATERIALS FROM M/S
J.K.CEMENT WORKS, NIMBAHERA
28
ACCORDING TO DRAFT AMENTMENT NO. 7 TO
IS269-1989 VIDE CED 2 (5894) , DECEMBER 1999, OF
BUREAU OF INDIAN STANDARD
NO MATERIAL SHALL BE ADDED AFTER BURNING OTHER
THAN GYPSUM (NATURAL OR CHEMICAL) OR WATER OR
BOTH, PERFORMANCE IMPROVERS AND NOT MORE THAN 1
OF AIR ENTRAINING AGENTS INCLUDING COLORING
AGENTS WHICH HAVE PROVED NOT TO BE HARMFUL
LIMESTONE (5 max) TO BE USED SHALL CONTAIN MORE
THAN 75 CaCO3
29
NCB
PERFORMANCE OF CEMENT PREPARED FROM CLINKER AND
MARBLE SLURRY (MS-RS) AS ADDITIVE (3-5)
30
NCB
THANK YOU
